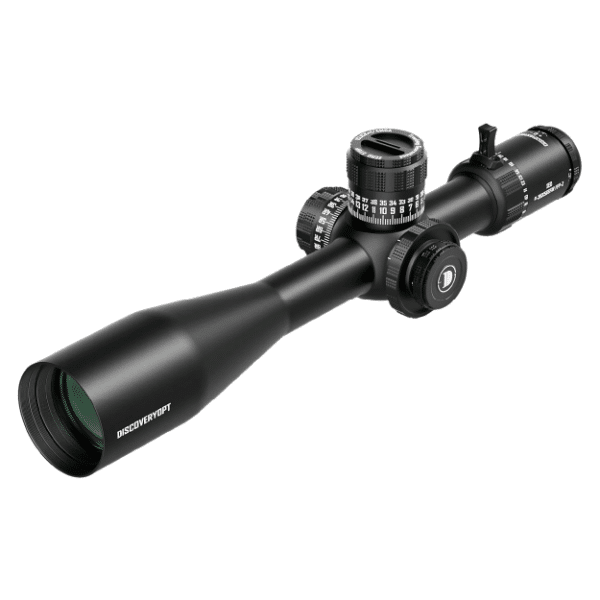

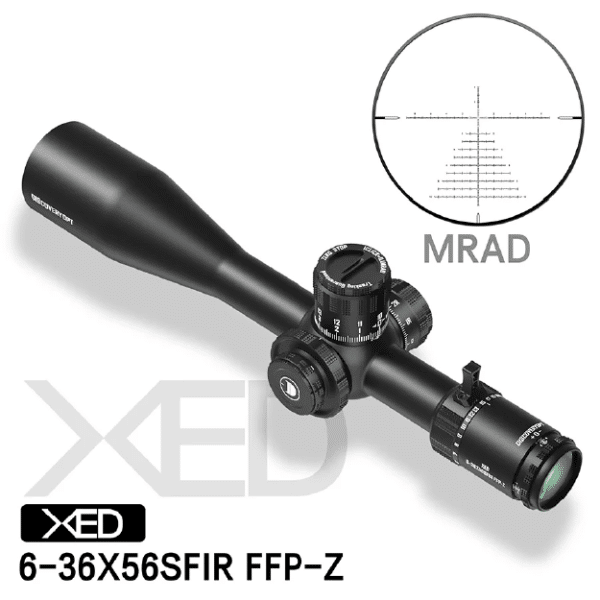

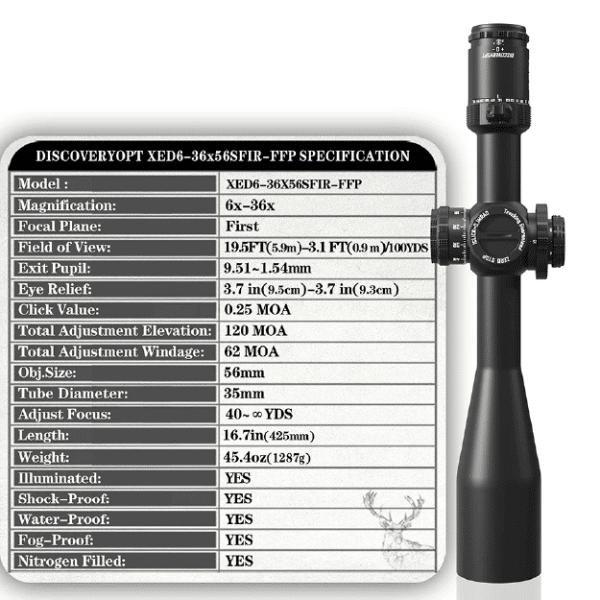

Model Name
XED 6-36×56

Magnification
6-36x

Focal Plane
First Focal Plane (FFP)

Objective Lens Diameter
56 mm

Tube Diameter
35 mm

Illumination
Red, 6 Brightness Settings

Length
16.7 in (425 mm)

Weight
45.04 oz (1,287 g)

Click Value
0.1 MRAD | 0.25 MOA

Turret Features
Zero Stop

Elevation Adjustment Range
35 MRAD | 120 MOA

Windage Adjustment Range
18 MRAD | 62 MOA

Field of View
19.5 ft – 3.1 ft @ 100 yds (5.9 m – 0.9 m @ 100 yds)

Exit Pupil
9.51 – 1.54 mm

Eye Relief
3.7 in (95 mm – 93 mm)

Parallax Adjustment
40 yds – Infinity

Recoil Rating
.50 BMG

Fogproof
Nitrogen Purged

Waterproof Rating
IP67

Battery
CR2032 Battery
